Home EV Charger Installation: Is a Switchboard Upgrade Necessary?

Why Upgrading Your Switchboard is Crucial for Safe EV Charger Installation in Your Home

Absolutely! In many households throughout Melbourne, the process of installing an EV charger often requires a significant switchboard upgrade. Many older switchboards lack the necessary load capacity, adequate RCD protection, and sufficient circuit space essential for the safe and compliant installation of an electric vehicle charger. Engaging a licensed electrician for a comprehensive inspection and subsequent upgrade of your switchboard is paramount. This ensures that your home can safely accommodate the charging of your EV without incurring any associated risks or complications, ultimately providing peace of mind to homeowners as they transition to electric mobility.

With the growing adoption of electric vehicles in Melbourne, an increasing number of homeowners are opting to install EV chargers in their garages or driveways. However, many individuals remain unaware that the proper preparation of your home’s electrical system is critical. This process begins with a thorough evaluation of your switchboard. Ensuring that your electrical infrastructure can manage the demands of an EV charger is vital for both safety and efficiency. This not only optimises the charging speed but also protects your property from potential electrical hazards, making it imperative to assess your switchboard’s capabilities before proceeding with installation.

At Direct Point Electrical, we have successfully installed numerous EV chargers across Berwick, Narre Warren, and Cranbourne in Melbourne’s outer eastern suburbs. In nearly every case, the switchboard is the first component we examine to confirm it meets all necessary safety standards for an effective charging experience. Our extensive expertise ensures that each installation adheres to local regulations, providing optimal performance tailored to your unique requirements and contributing to a safer electrical environment.

Understanding the Necessity of a Dedicated Circuit for EV Chargers Over Standard Power Points

EV chargers are fundamentally different from standard household appliances like toasters or washing machines. Most residential charging units, especially the 7kW and 22kW models, necessitate:

• A dedicated circuit specifically designed to manage the electrical load more effectively
• RCD protection as required by AS/NZS 3000 standards to enhance safety
• Ample amp capacity, usually ranging from 32A to 50A, to meet high power demands
• Effective load balancing to mitigate the risk of overloading existing circuits in your home

Consequently, connecting an EV charger to an outdated fuse box or an overloaded switchboard not only poses imprudent risks but also creates significant safety hazards and fails to comply with current regulations. For more detailed insights regarding the requirements for EV chargers in residential settings,

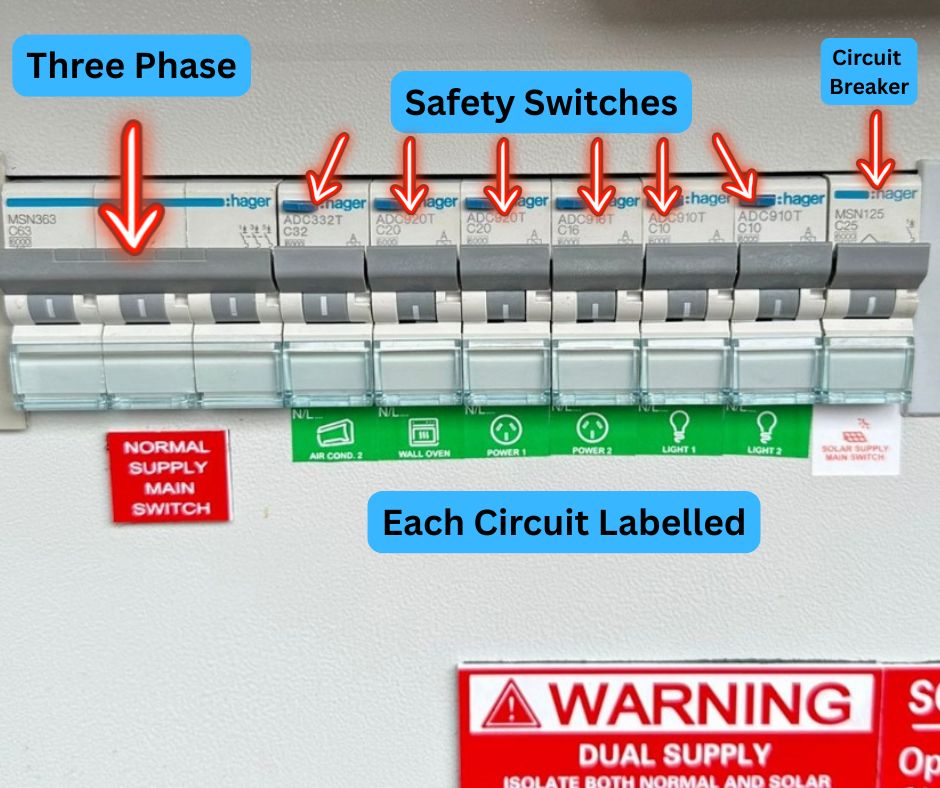

How to Determine If Your Switchboard Needs an Upgrade for EV Charger Compatibility

If your home was built over two decades ago, it is highly likely that your switchboard lacks the essential capacity to support an EV charger. Here are several indicators we meticulously assess during our evaluations:

• Old ceramic fuses or asbestos backing, both of which are outdated and present health risks
• Absence of RCD or safety switch protection, crucial for preventing electrical accidents and ensuring maximum safety
• Limited circuit space that does not allow for the installation of a new dedicated circuit
• Signs of burn marks, buzzing noises, or frequent tripping when using electrical appliances
• Lack of a 3-phase supply if you plan to install a faster 22kW charger

Any of these warning signs indicate potential risks for both safety and EV compatibility in your home. Addressing these issues promptly is necessary to ensure a secure electrical environment that supports modern energy needs.

Note: The Electric Vehicle Council strongly recommends that a dedicated circuit be installed for your EV. This precautionary measure helps prevent the overloading of existing circuits within your residence. When establishing a dedicated circuit, it is advisable to choose a 15amp outlet and charger instead of the standard 10amp circuit. This adjustment can enhance your charging rate by 50% and significantly reduce your charging time by a third, contributing to a more efficient charging experience.

Step-by-Step Overview of the Switchboard Upgrade Process for EV Charger Installation

At Direct Point Electrical, we strive to simplify the upgrade process for our customers, ensuring it is as straightforward and stress-free as possible:

1. Site Assessment – We conduct a comprehensive inspection of your existing switchboard, wiring, and main power supply to identify any issues.
2. Load Calculation – We assess whether your residence can handle the additional load generated by the EV charger, taking into account your current electrical consumption.
3. Upgrade Planning – If an upgrade is necessary, we provide a detailed quote for a new compliant switchboard featuring RCDs, surge protection, and adequate space for the EV charger installation.
4. Documentation & Compliance – We handle all necessary paperwork with your energy distributor (AusNet or United Energy) and issue a Certificate of Electrical Safety upon completion of the work, ensuring compliance with all relevant regulations.

Depending on the current condition and configuration of your existing switchboard, most upgrades can be completed within a single day, allowing you to quickly enjoy the convenience of charging your EV at home without unnecessary delays.

Understanding the Electrical Compliance Requirements in Victoria for EV Charger Installation

All electrical work performed in Victoria must adhere to the AS/NZS 3000 Wiring Rules, which regulate the installation of EV chargers. A licensed electrician is required to:

• Implement RCD protection for the circuit being used, ensuring safety during operation
• Ensure that the load from the charger does not exceed the main switch capacity to prevent overloads
• Submit all necessary forms to your energy distributor to facilitate proper connections
• Provide a Certificate of Electrical Safety upon completion of the project, verifying compliance with safety standards

Attempting any DIY or unlicensed installations not only contravenes regulations but also voids warranties and poses significant fire hazards or insurance claim denials, underscoring the necessity of professional involvement.

Steps to Consider If You Already Have Solar Panels or Batteries Installed

This is fantastic news! However, it is still essential to assess how the EV charger will interact with your existing solar energy system. Balancing the load between solar energy, battery storage, and EV charging requires meticulous planning to ensure efficient energy use and optimal performance.

We will collaborate closely with you to:

• Schedule charging times to optimise the utilisation of solar energy, thereby reducing reliance on grid power
• Ensure that your inverter and battery configuration can effectively accommodate the energy draw from the EV charger
• Recommend suitable charger models that feature smart load management capabilities to maximise efficiency

Evaluating the Need for a 3-Phase Power Supply Upgrade for Optimal EV Charging

Not necessarily. A 7kW charger operates effectively on single-phase power for most users. However, if you:

• Desire faster charging times to reduce downtime
• Own two electric vehicles requiring simultaneous charging
• Or regularly use high-load appliances concurrently with the charger

… then considering a 3-phase upgrade could be advantageous. We can provide expert advice on this during your initial inspection to determine the best course of action tailored to your specific needs.

Essential Factors to Consider for Efficient EV Charger Installation at Your Home

If you are contemplating the installation of an EV charger at your home, prioritising your switchboard is absolutely essential. At Direct Point Electrical, we offer free site inspections, transparent pricing, and a seamless process to ensure safe, efficient, and future-proof EV charging solutions tailored to your home’s requirements. This level of service guarantees that you can enjoy the benefits of electric vehicle ownership without any worries about electrical safety.

Whether you reside in Berwick, Narre Warren, or any area in Melbourne’s outer east, we have the ideal EV charging solution to meet your specific needs, ensuring that you can embrace the electric vehicle revolution with confidence and efficiency.
