Clay Soil’s Impact on Caboolture Pipes Revealed

If you live in Caboolture, Morayfield, Upper Caboolture, or the Moreton Bay region and have observed wet patches, sinking areas, persistent blockages, or cracks in your foundation, you might be concerned that reactive clay soil is jeopardising your underground pipes.

The soil in Caboolture mainly consists of reactive clay, which expands when moist and contracts as it dries. This type of soil can change in volume by over 20%, applying considerable pressure on underground pipes during wet conditions. When the soil dries, it may leave pipes unsupported, especially older clay sewer and galvanised water pipes. Early detection through camera inspections can uncover damage, and pipe relining often offers a practical solution without needing excavation.

In Caboolture, underground pipes are in constant interaction with the surrounding soil.

This ongoing interaction can lead to significant damage over time. By the time you notice surface indications, underlying problems may have been developing for an extended period.

How Do Clay Soil Cycles Cause Pipe Damage?

Four key phases contribute to this problem: wet swelling (compression), dry shrinking (loss of support), the repetitive nature of these cycles, and the typical drought-to-flood transitions experienced in Southeast Queensland. Each cycle intensifies existing cracks and misaligns joints.

• The wet phase: Heavy rainfall in Caboolture leads to the clay absorbing moisture and expanding. This expansion applies crushing pressure on pipes from all directions, potentially forcing joints together or pulling them apart. Rigid pipe materials are particularly susceptible to cracking under such stress.
• The dry phase: Once the rain stops and the clay dries, it contracts and detaches from the pipes. This results in voids and gaps, causing sagging, bending at joints, and the creation of bellies where water and sediment can gather.
• The repetitive cycle: This expansion and contraction process occurs repeatedly with weather changes—often dozens of times a year in Caboolture’s climate. Each cycle increases stress on the pipes, gradually widening existing cracks.
• The drought-flood pattern: Southeast Queensland experiences cycles of dryness followed by heavy rainfall. After extended dry spells, the clay shrinks significantly. When heavy rains eventually occur, the soil expands quickly, putting pipes—often resting in loose, cracked ground—under sudden and intense pressure.

Which Pipes Are Most Susceptible to Damage?

Older clay sewer pipes (from homes built before the 1970s), galvanised steel water mains (from homes constructed before 1985), and concrete stormwater pipes are at the highest risk. Modern PVC pipes generally offer better performance, but inadequate backfill can still lead to joint separation. Copper pipes, while flexible, can develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, especially from homes built prior to the 1970s in Caboolture, are among the most prone to failure. Their brittle and heavy properties, combined with mortar joints, increase the likelihood of cracking.
• Galvanised steel pipes: These pipes, used for water supply in homes built before 1985, are already weakened by internal corrosion and can crack as the surrounding clay soil shifts.
• Concrete stormwater pipes: While older stormwater systems can manage compression, they often crack at joints during ground movement, allowing roots to penetrate through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. significant ground movement can still cause joint separation. Poor backfill during installation can increase the vulnerability of PVC pipes.
• Copper pipes: Commonly used in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still experience leaks at connection points due to repeated bending stress.

What Are the Main Signs of Underground Pipe Damage?

Be on the lookout for wet patches during dry weather, sinkholes or soft areas, slow drainage, unpleasant odours in your yard, unusually lush grass patches, trees with concentrated root growth in one spot, and cracks in your slab. If you notice two or more of these signs, arrange for a camera inspection without delay.

• Wet patches in the yard during dry weather—this may indicate water leaking from a broken pipe, saturating the soil.
• Sinkholes or soft spots—these occur when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or persistent blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at damaged sites.
• Foul odours in your yard—a cracked sewer pipe may leak sewage into the surrounding soil.

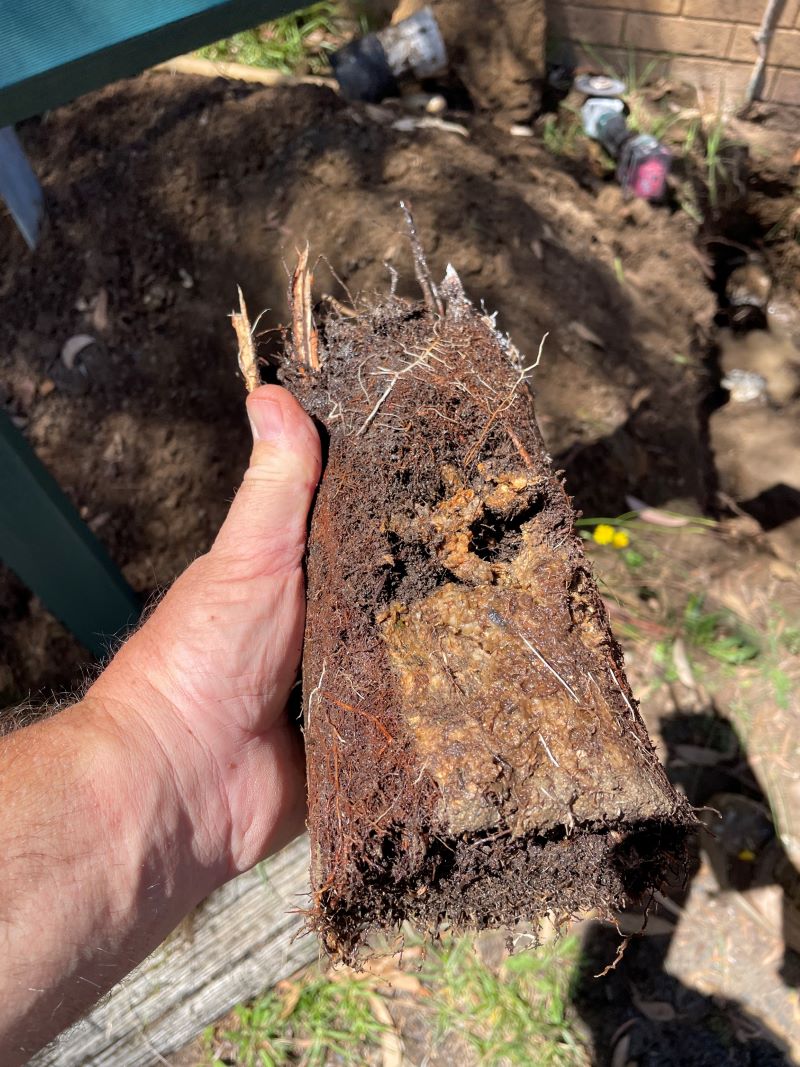

• Tree roots thriving in a specific area—roots often sense moisture and nutrients leaking from damaged pipes, leading to concentrated growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home’s foundations.

How Do We Detect Pipe Damage Effectively?

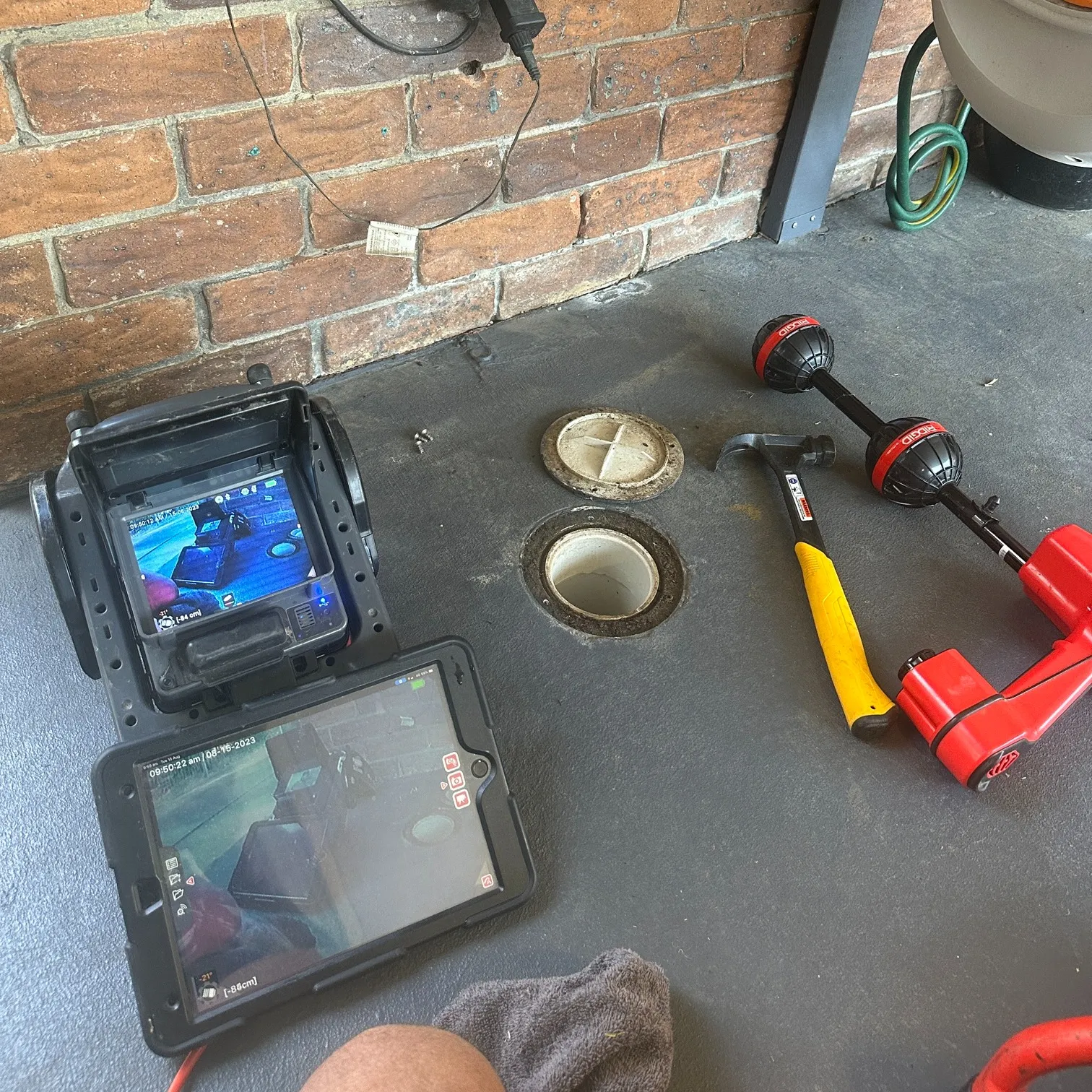

We use CCTV drain cameras to perform visual inspections of sewer and stormwater pipes in real time, allowing us to identify cracks, root intrusions, misaligned joints, bellies, and collapses. For water mains, we apply acoustic and thermal leak detection methods, along with a comprehensive property assessment to anticipate potential future damage.

• CCTV drain camera inspection: A camera travels through the pipe, providing a real-time visual assessment of its condition. We can identify cracks, breaks, root intrusions, misaligned joints, sediment buildup, and areas that have collapsed.
• Leak detection: We use advanced acoustic and thermal detection tools to locate leaks in water supply pipes, enabling us to identify issues without the need for excavation.
• Ground assessment: We analyse the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and predict where future issues may arise.

What Are the Best Solutions for Addressing Pipe Damage?

Hydro jetting is used to clear immediate blockages. For cracked or root-invaded pipes, pipe relining is the most effective solution—this method does not require excavation. Installing French and spoon drains can help mitigate future pressure from ground movement. Full excavation is only necessary when there is complete pipe failure.

• Hydro jetting: This technique removes roots, sediment, and debris from damaged pipes, restoring proper flow and often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is ideal for pipes impacted by cracks and root invasion in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This method is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains collect and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to reduce future issues related to ground movement.

Why Is Timely Action Essential to Prevent Pipe Collapse?

Damage to underground pipes in clay soil progressively worsens. The situation does not stabilise; it deteriorates. A small crack today may lead to complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately blocking the pipe entirely.

The most cost-effective repairs occur when issues are addressed early. A camera inspection reveals the precise conditions underground, allowing you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While you can reduce the risk of damage, complete prevention is not possible. Regularly watering the area around your home during dry spells can help limit the shrinkage cycle. Effective tree management can decrease root pressure on pipes. Proper drainage systems also assist in reducing soil saturation. Regular monitoring of pipes in reactive clay soil is essential—camera inspections can identify potential issues early.

What Are the Expected Repair Costs for Pipes Damaged by Clay Soil?

Repair costs can vary depending on the extent of the damage and the chosen method. Hydro jetting to clear a blockage typically starts at around $350. Pipe relining for a damaged section usually begins at $4,000, while complete excavation and replacement for a collapsed pipe can exceed $8,000, influenced by factors such as depth, length, and accessibility. We provide accurate pricing following a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most cases, yes. A relined pipe features a smooth, jointless interior that actually offers better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining compared to replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Has Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Indicators to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was built with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Consider Skipping This Article?

• If you are located outside the Moreton Bay region—different soil conditions require different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you plan to DIY plumbing work—underground sanitary plumbing must be performed by a licensed plumber in Queensland.
• If you seek the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t begin excavation without first conducting a camera inspection.
