Dedicated Circuits for Heavy Tools in Workshop Power Solutions

Transforming a shed on a rural property into a fully functional workshop requires careful attention to the electrical setup. Using a MIG welder, air compressor, and table saw on the same circuit as your home can cause serious issues such as frequent circuit breaker trips, flickering lights, and potentially dangerous overload situations that compromise both safety and performance.

This in-depth guide outlines the key components of establishing a robust workshop electrical system in rural areas of the Mid North Coast. We will delve into the necessity of dedicated circuits, the role of sub-boards, and the advantages of three-phase power for more demanding equipment. If your requirements are limited to basic electrical needs—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for initial guidance. This article specifically addresses workshops that demand considerable power for intensive tasks.

Why Are Dedicated Circuits Essential for Your Workshop’s Electrical Needs?

Many residences utilise shared circuits for multiple outlets, which usually suffices for low-power devices like kettles and televisions. complications arise when operating a 32-amp MIG welder alongside an air compressor. Without proper circuit management, this can lead to significant difficulties.

Consider the potential complications of connecting heavy machinery to household circuits:

• Frequent circuit breaker tripping — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, worse, cause the wiring to overheat before the breaker can react.
• Voltage drops — Extended cabling between the main board and the shed can lead to voltage sag, resulting in tools overheating, operating slower, and wearing out more quickly.
• Power disruptions in the home — Your partner could lose power in the kitchen when the compressor starts, leading to unnecessary discussions.
• Increased fire risks — Overloaded wiring in walls and cable runs is a major cause of electrical fires in rural settings.

Installing dedicated circuits can effectively resolve these issues. Each heavy tool should have its own circuit, appropriately sized for its load, along with individual circuit protection. This arrangement ensures that circuits operate independently, preventing overloads.

Evaluate the Power Requirements of Key Workshop Equipment

Before your electrician can create an effective circuit design, it’s essential to comprehend the power requirements of your equipment. Below is a breakdown of common workshop tools and their typical power consumption:

• MIG welder — Requires between 15A and 32A, depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units have different power demands, which will be addressed later.
• Air compressor — Consumes around 10A to 15A. The startup surge can be considerable, with compressor motors often drawing three to four times their running current for a brief period upon startup.
• Table saw — Generally uses between 10A to 15A for a quality cabinet saw. More affordable contractor saws may require less power, but investing in a quality tool is advisable.
• Lathe (wood or metal) — Similar to table saws, these typically need between 10A and 15A, with metal lathes usually on the higher end of the spectrum.
• Dust extractor — About 10A for a single-phase unit. It must run continuously while using other tools, necessitating its own circuit.
• Plasma cutter — Draws between 20A and 30A, akin to a welder, and thus also requires a dedicated circuit.

When you add up the total power draw, it becomes clear that a single 20-amp circuit from the home is insufficient. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, underscoring the importance of a comprehensive electrical plan.

Choosing the Right Circuit Breaker Size and Implementing RCD Protection

Each circuit in your workshop requires a breaker that aligns with the cable size and expected load. Your electrician will assess this based on your equipment, but generally consider the following:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that requires considerable power.
• Three-phase breakers — These should be sized according to your equipment’s specific needs (details provided below).

RCD protection is mandatory. As per AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must be fitted with RCD (safety switch) protection. This legal requirement is crucial due to the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture heighten the possibility of earth faults. RCDs quickly cut power if there’s a current leak to earth, which can mean the difference between a minor shock and a serious injury.

Typically, your electrician will use a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that combine both functions. RCBOs are particularly advantageous in workshops because a fault in one circuit does not disrupt power to others, resulting in a more reliable electrical system.

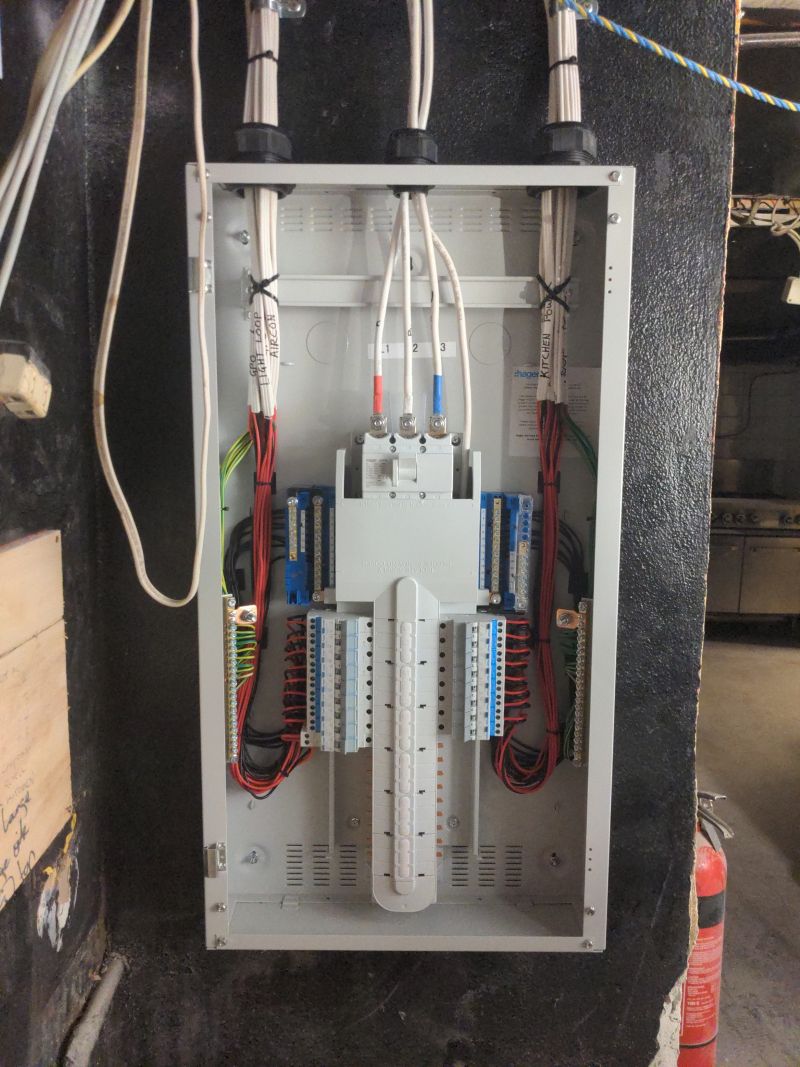

Install a Dedicated Sub-Board for Your Workshop’s Electrical Needs

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more efficient approach. Here are the advantages:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This arrangement reduces voltage drop and lowers cable costs.
• Streamlined fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to walk back to the house to reset it, improving operational efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits down the line, simplifying the integration of new tools later.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the household electricity, a vital safety feature.

If your main switchboard is outdated or at full capacity, you may need an upgrade to adequately support the workshop sub-board. Older ceramic fuse boards may not safely handle the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions, ensuring long-term efficiency.

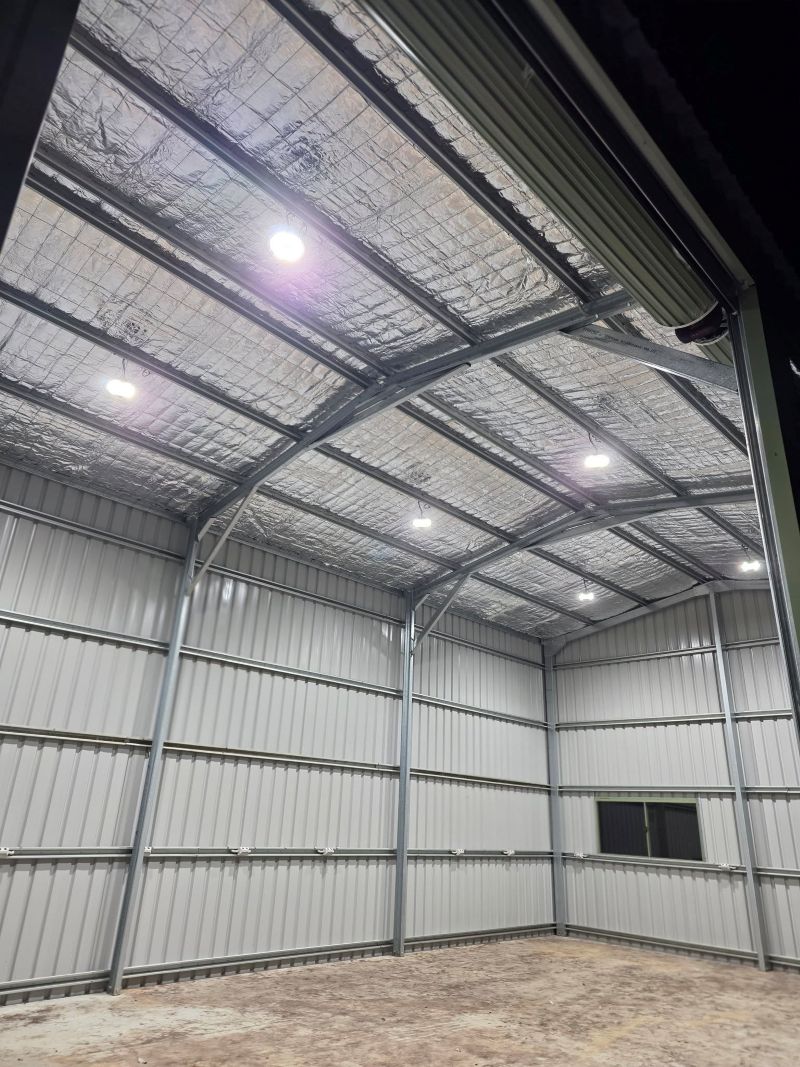

Create a Comprehensive Lighting Strategy for Your Workshop

Proper lighting is essential for safety in your workshop. Clear visibility is crucial, especially when working with sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, uniform illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure optimal visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal shavings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting illuminates the general area, focused lighting at the workbench, lathe, and drill press is critical for precision work, enhancing productivity and safety.
• Dedicated lighting circuit — Lighting should operate on its own circuit, ensuring illumination remains when a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

Our extensive experience with lighting designs in commercial spaces means we can assist you in creating a workshop lighting plan that significantly enhances your working environment while adhering to safety standards.

Plan for Effective Ventilation and Dust Extraction Circuits

When engaging in woodworking or welding, ensuring proper ventilation is as crucial as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits for several essential reasons:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In an optimally designed workshop, the dust extractor can be wired to activate automatically when certain tools are powered on. This level of integration requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Leverage the Benefits of Three-Phase Power for Heavy Equipment

If you are involved in intensive metalwork or operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may become inadequate. Three-phase power offers several distinct advantages:

• Increased power capacity — Three-phase motors operate more efficiently and provide greater power without the excessive startup surges commonly associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, which extends the lifespan of your tools and enhances overall efficiency.

Accessing three-phase power in rural regions of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further details, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will need a three-phase switchboard installation complete with suitably rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Notably, your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often present in rural power lines, your equipment faces considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This cost-effective measure is far less expensive than replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common on the Mid North Coast—we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties that rely on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply, preventing back-feeding or damage to connected equipment.

Incorporate Additional Features Into Your Workshop Fit-Out

Here are several additional elements to consider integrating into your workshop wiring from the outset:

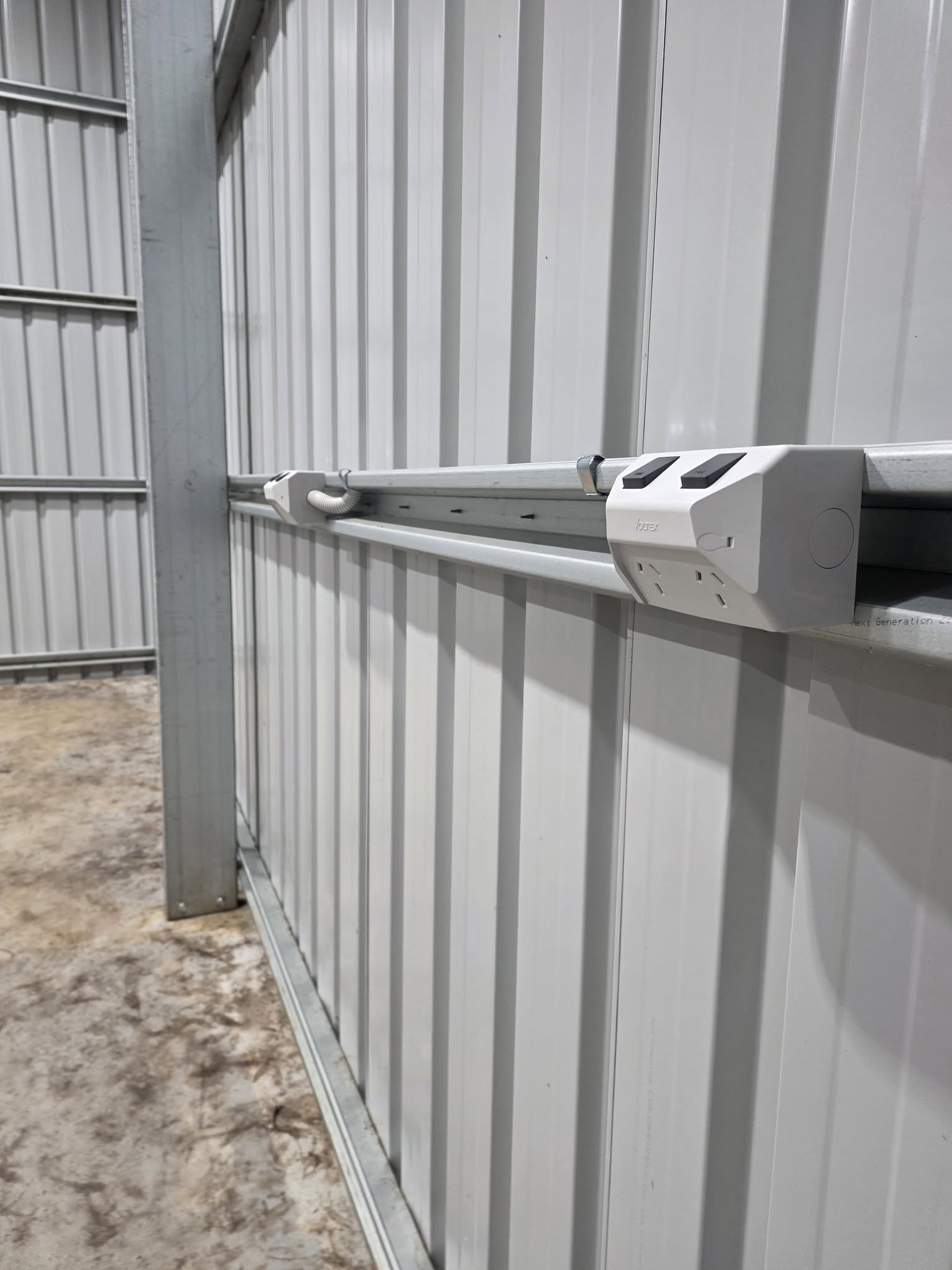

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets positioned conveniently near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring alongside the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are finished.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas where street lighting may be inadequate.
• EV or equipment charging — If you utilise electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Costs for Your Workshop Electrical Fit-Out

Cost estimates will vary based on workshop size, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment needs—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Done by Licensed Professionals

It is essential to emphasise this point. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates across Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create serious safety hazards, and result in significant fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have dire consequences.

Your Most Common Questions Answered

Can I Use a Standard Power Point for My Welder?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding frequently, it is vital to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Needed in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally needs a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a few spares for future additions. We customise the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Required for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only needed if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check our complete guide on Do I Need Three-Phase Power on My Property? to determine if it suits your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can generally be completed within 1 to 2 days. A full fit-out involving multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you updated throughout the process.

Ensure Your Workshop Is Wired for Maximum Efficiency
