Ducted and Split Air Conditioning: Installation in Tarragindi

Precision Electrical & Air has successfully executed a detailed air conditioning installation featuring two distinct systems at a residential property located in Tarragindi. This project included the provision and installation of a Daikin ducted air conditioning system for the upper floor, complemented by a Daikin high-wall split system situated in the living area on the lower floor.

Expert Installation of Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

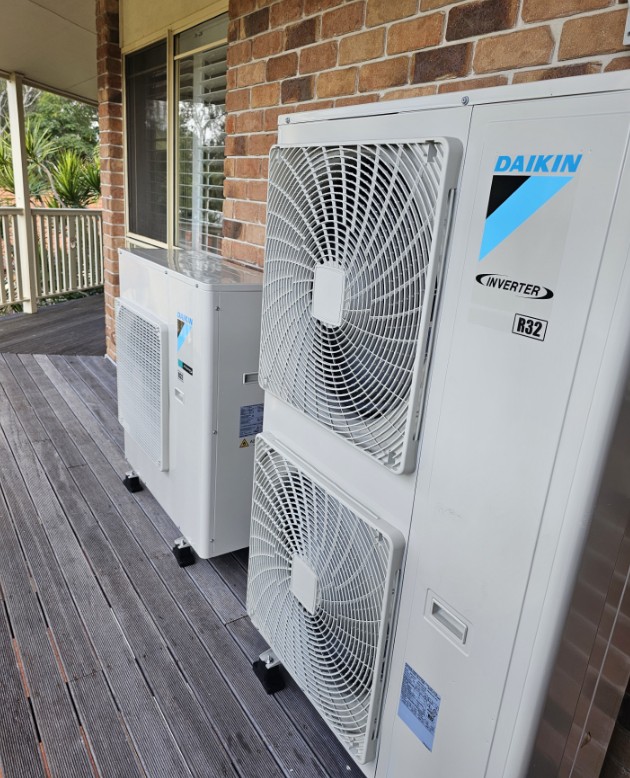

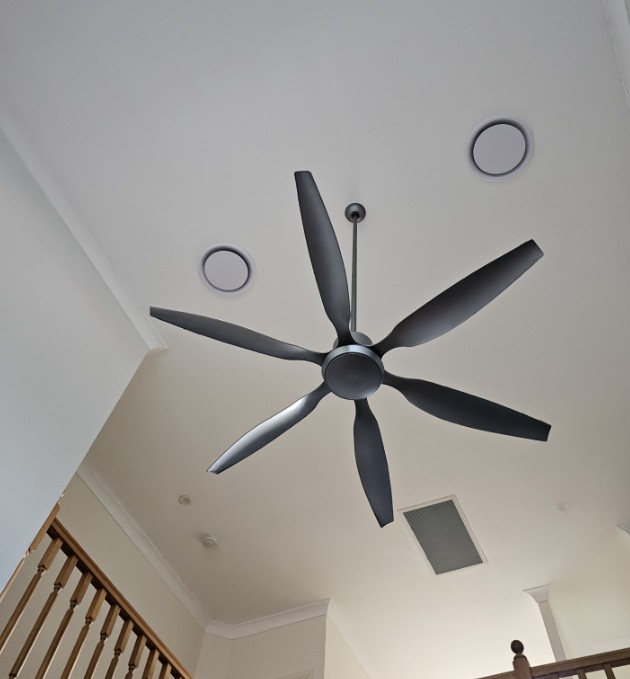

The skilled team at Precision Electrical & Air conducted the installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system with meticulous care. The indoor unit was strategically placed within the ceiling space above the void, while the condenser was securely mounted on the front balcony wall using rubber feet to minimise vibrations. The connection between the indoor and outdoor units was effectively concealed within ducting as it exited the ceiling space.

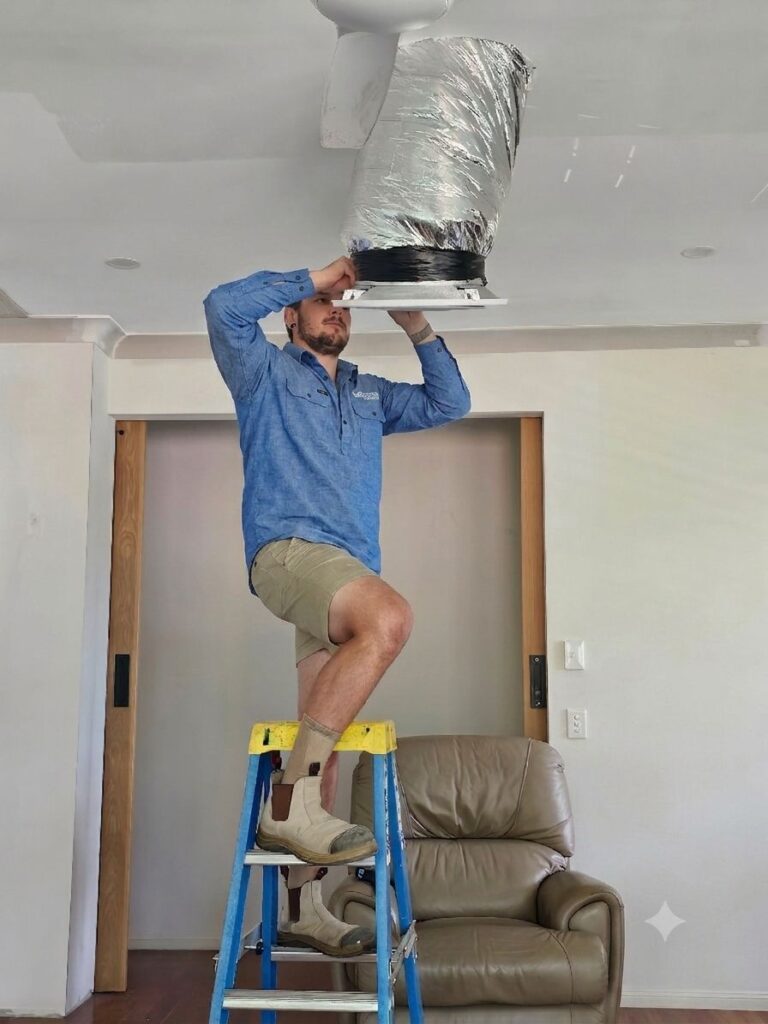

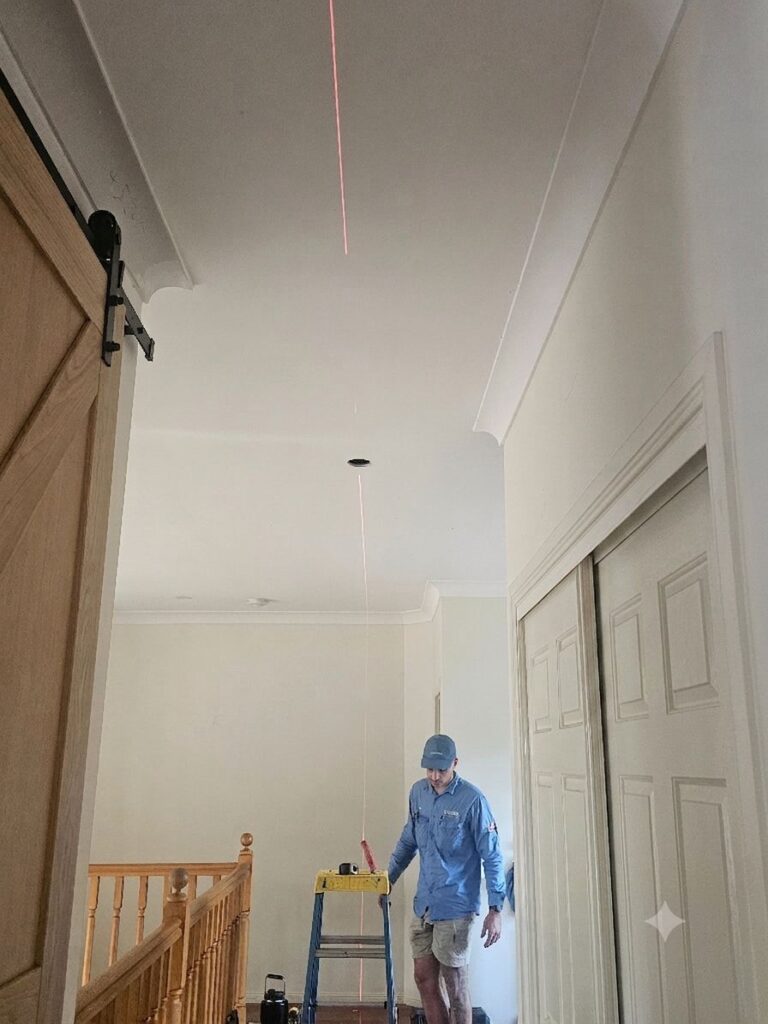

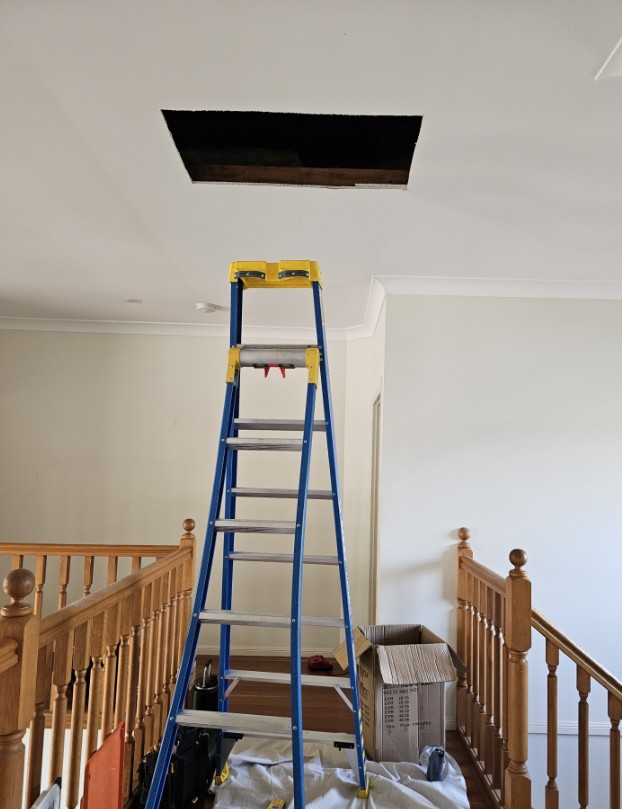

To guarantee efficient drainage, two drainage systems were installed from the indoor unit and its safety tray to the external gutter. A comprehensive network of ducting, branch take-offs, zone motors, and air plenums was precisely installed throughout the ceiling space, all connecting back to the indoor unit. A return air grille was thoughtfully positioned in the upstairs hallway to enhance air circulation and maximise system efficiency.

A dedicated electrical sub-circuit was established, running from the switchboard to the outdoor unit, featuring an NHP isolation switch mounted next to the condenser. A MyZone Multipoint touchpad zone controller was installed in the upstairs hallway, providing improved control over the air conditioning system and its various zones.

Professional Installation of Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

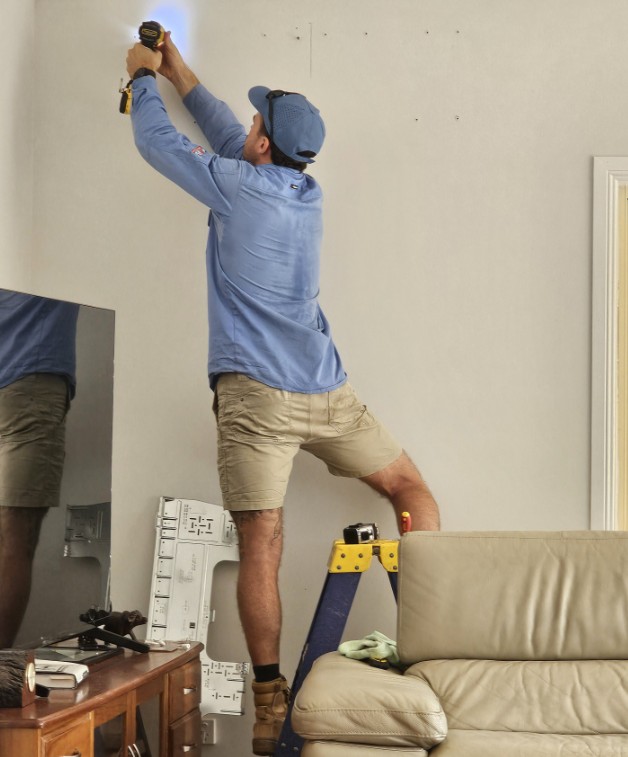

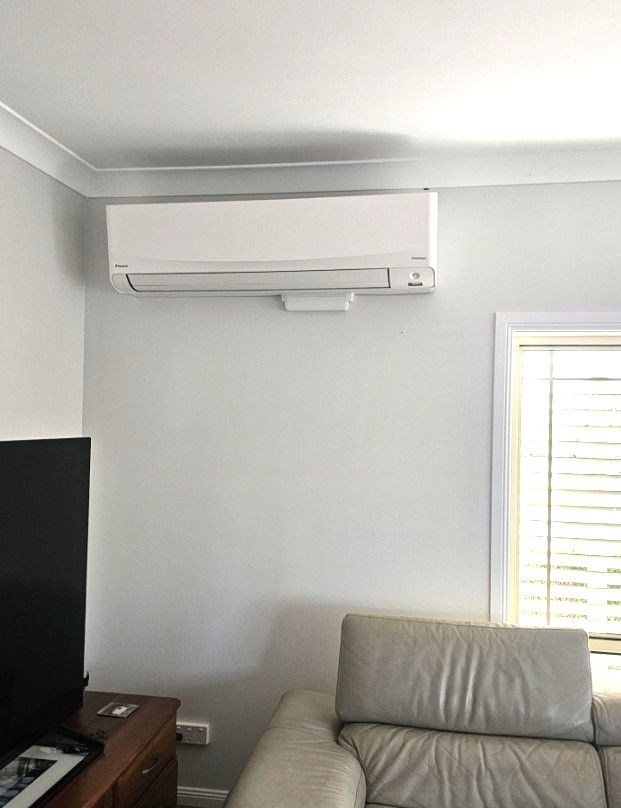

In the downstairs living space, Precision Electrical & Air successfully installed the Daikin FTXV80W 8.0kW high-wall reverse cycle split system. This involved the installation of new ducting, interconnect cables, and copper pair coils essential for linking the indoor and outdoor units, with the condenser secured on rubber feet to further dampen any vibrations.

A dedicated electrical circuit was created from the switchboard to the condenser, which included an NHP isolation switch for added safety. To manage condensation effectively, an Aspen Silent+ Mini condensation pump was installed beneath the indoor unit and connected to the nearest stormwater downpipe. The entire system underwent rigorous commissioning to ensure optimal performance levels.

Overview of Installation Outcomes

This installation has provided the property with efficient zoned ducted heating and cooling for the upper level, along with a dedicated high-wall split system for the downstairs living area. Both Daikin systems were installed in strict adherence to manufacturer specifications, ensuring that all electrical circuits and drainage systems were properly configured and fully operational.

For expert ducted or split system air conditioning installation in Tarragindi or the surrounding suburbs of Brisbane Southside, contact Precision Electrical & Air at 0423 163 359.
