Victorian Tiles Restoration for Worn Minton Floor Revival

What Causes Persistent Dullness in Minton Floors After Cleaning in Walsall?

Assessing the Original State of Victorian Tiles for Effective Restoration

If your Victorian tiles still appear dull after multiple cleaning attempts, it is often due to trapped contaminants and structural movement rather than just surface dirt. The Walsall Minton hallway showed signs of a compromised surface, muted colours, loose tiles, an outdated sealer, and residues embedded within the clay. regular mopping simply redistributed grime rather than eliminating it effectively. This scenario placed the project firmly within the realm of restoration, necessitating specialised techniques over standard cleaning methods.

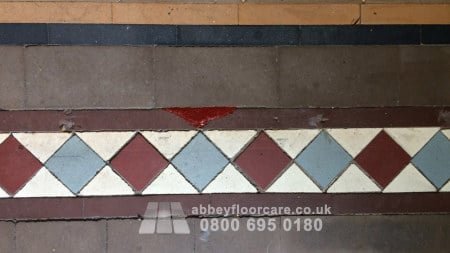

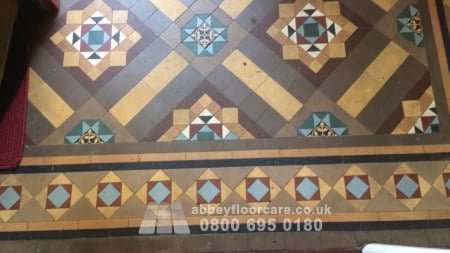

The Walsall hallway retained its status as an original patterned entrance floor; however, the surface lacked the vibrant contrasts of red, buff, cream, and dark clay typically found in a well-restored Minton layout. Foot traffic had pressed fine soil into the tile surface, while the previous topical sealer had dulled the overall finish. the grout lines darkened due to accumulated surface residues. A similar situation was observed in the Minton tile floor restoration in Ovington, where previous coverings and compacted dirt concealed the original floor until a careful restoration process revealed the intricate pattern.

Walsall is home to numerous late Victorian and Edwardian terraced houses, as well as interwar semi-detached homes and post-war developments. A significant portion of the older housing stock dates back to the late 19th and early 20th centuries, making Victorian tile floors particularly common in entrances, porches, pathways, and occasionally kitchens within these historic properties. Located in the West Midlands metropolitan county, Walsall is governed by Walsall Council, with most central areas designated by the WS postcode districts. The town’s rich industrial history and preserved period housing contribute to the prevalence of many original clay and encaustic tile floors, often hidden beneath modern coverings or outdated sealers.

How Can Hidden Residues Affect the Appearance of Your Tiles?

The presence of trapped residues demonstrates why the hallway appeared worn even after years of cleaning efforts. The porous clay surface allowed dirt, old cleaning solutions, waxes, and coating residues to settle beneath the visible layer of the tiles. While fresh water may have dampened the contamination, it proved inadequate for removal. This illustrates the practical implications of tile porosity on an aging Minton floor: soil infiltrates the pores, accumulates around grout lines, and results in a flat appearance despite diligent cleaning.

The old topical sealer also created an inconsistent barrier across the floor. Coatings that initially provided temporary shine can break down into tacky residues, trapping grime and creating darker patches in areas where the finish has worn thin due to foot traffic. the restoration process required careful removal of the old sealer, releasing surface residues, thoroughly rinsing the floor, and extracting the resulting slurry with a wet vacuum before applying any protective finish.

Contamination from carpet adhesives posed additional challenges as many Walsall hallway tiles had previously been covered with carpet, linoleum, or vinyl over the years. A hidden layer can be concealed beneath thick glue, bitumen residues, tape remnants, and staining, which only becomes visible once the covering is removed. In this specific case, no significant adhesive presence dominated the hallway; however, the inspection still sought out brownish glue, black bitumen, softened coatings, and scraper marks, as these residues can influence the restoration process.

How Do Moisture Behaviour and Tile Stability Affect Restoration Techniques?

The characteristics of old permeable sub-floors significantly influenced the cleaning and sealing methods suitable for the Walsall floor. Excess water can infiltrate the porous clay, reach the underlying bedding, and result in tile movement, lifting, dampness, salt reactions, or an unstable foundation before sealers are applied. This moisture behaviour necessitated relying on controlled cleaning, careful rinsing, and extraction rather than flooding the hallway with water.

Tile instability due to loose movement was a critical consideration, as water and slurry can seep beneath raised edges and into gaps. Once slurry dries beneath the tile surface, the floor may continue to appear dirty from the edges even after the main surface has been cleaned. the restoration process treated the floor as a cohesive historic assembly: clay tiles, grout lines, bedding, moisture pathways, and breathable protective measures all needed to work together harmoniously.

During the assessment, the condition of missing tiles, backfilled doorway patches, exposed sub-floor areas, cement leveling compound backfill, and prior repair infills were also factored in. Cement leveling can disrupt the original tile pattern, obstruct visual continuity, and leave a repaired hallway looking patchy rather than seamless. This Walsall floor required primarily local resetting rather than extensive replacement work; however, assessing the doorway, original tiles, and sub-floor condition ensured that a simple clean was not mistaken for a proper restoration.

Why Is This Restoration Project Necessary?

This endeavour was classified as restoration because mere cleaning could not rectify loose tiles or address the failures of old coatings. The work was crucial to tackle compacted grime, surface coatings, grout line residues, moisture risks, and unstable areas before any sealing could take place. A similar restoration sequence is documented in the Victorian tile restoration case study in Penkhull, where loose sections and damaged joints also required reintegration into the overall floor layout to achieve a visually coherent result.

The original Minton pattern had not vanished; rather, it was visually obscured. Restoration effectively removed the old products and ingrained dirt that dulled the colours, subsequently protecting the clay with a breathable finish instead of a heavy surface film. Following professional intervention, the floor was expected to showcase a significantly enhanced appearance, and a professionally restored and adequately sealed Victorian tile floor is considerably easier to clean and maintain compared to a worn or improperly treated surface.

Ongoing maintenance is vital for safeguarding the restored clay surface by removing dry grit before wet mopping and using a pH-neutral cleaner instead of harsh household chemicals. Strong cleaners should be avoided as they may leave alkaline residues, bleach grout lines, and shorten the lifespan of the sealed finish. Broader maintenance principles for older porous clay floors are elaborated in the Victorian and Minton tile cleaning hub, which provides support for the aftercare decisions made in this Walsall case study.

What Key Factors Lead to Loose Tiles and Deep Soil in This Restoration Project?

The presence of loose Minton tiles and deep soil transformed this worn hallway into a restoration project due to underlying issues beneath the visible surface. The homeowner noted dull colours, dark joints, and unstable areas; however, the root causes were movement, trapped residues, and contaminated slurry paths beneath and between the original tiles. To address these issues, structural re-bedding was essential before deep cleaning could effectively restore the floor’s even state.

The extraction of slurry was critical, as loosened soil, rinse water, mineral salts, and old coating residues had to be removed from the tile pores rather than allowed to re-dry within them. The restoration employed controlled water, agitation, rinsing, and wet vacuum removal, ensuring the floor was cleaned without excessively saturating the old permeable sub-floor. Similar movement and moisture behaviours are discussed in the right way to restore Victorian tiles properly, illustrating how stabilisation and breathable protection are integral components of the historical flooring restoration process.

Stabilising loose tiles is a prerequisite before deep cleaning can uniformly restore the floor.

What Steps Were Taken to Stabilise the Walsall Hallway While Preserving Original Tiles?

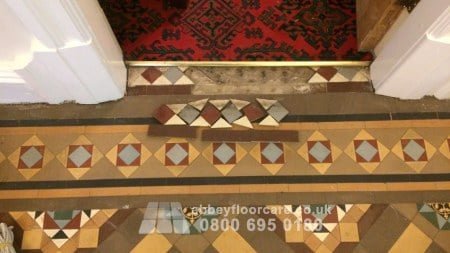

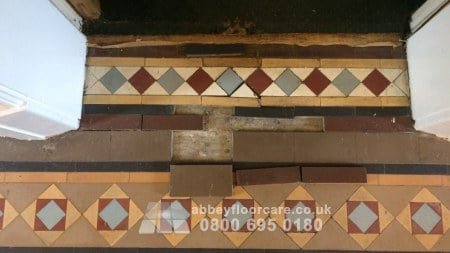

Scrubbing a loose Minton hallway before stabilising it presents the risk of driving slurry beneath the tiles, potentially damaging fragile edges. In this case, the loose sections were carefully lifted, old bedding and residues were removed, and the tiles were reset to maintain the integrity of the original layout. This approach ensured that repairs were part of the restoration workflow rather than evolving into a separate repair narrative.

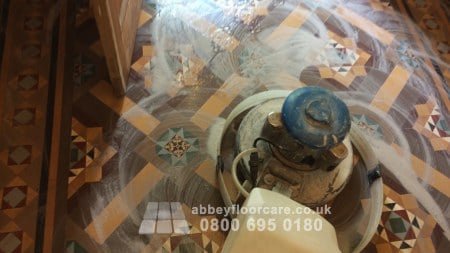

Thorough surface cleaning would have eliminated some visible grime, but it would not have addressed the old sealer, grout smears, mineral salts, and residues lodged within the pores. Controlled restoration involved an alkaline cleaner, scrubbing pad, rotary machine, clean rinse water, and wet vacuum extraction to eliminate contaminated slurry from the tile surface and joints. In instances where acid wash neutralisation was necessary due to alkalinity, traces of cement haze or mineral salts were rinsed away before moisture could evaporate and disturb the colour balance.

Careful stabilisation protected the original tiles, as the process was dictated by the floor’s condition rather than applying a one-size-fits-all approach across the entire area. Broken tiles, missing tiles, and the need for matching replacement tiles were all considered to ensure that the pattern exhibited continuity. this hallway primarily required resetting, thorough cleaning, and breathable protection. This sequence restored the floor’s appearance, simplified surface maintenance, and avoided grinding down the historic clay face.

How Did the Restoration Process Enhance Clarity While Preserving Historical Integrity?

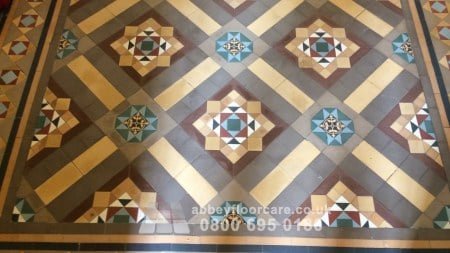

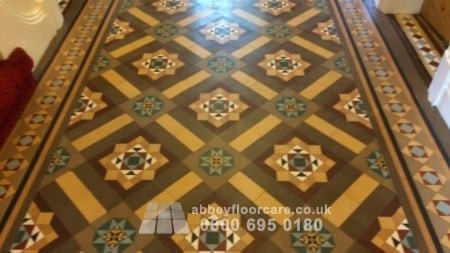

If your Victorian tiles reveal colours hidden beneath layers of dull wear, restoration aims to enhance definition without erasing the genuine age of the floor. The Walsall floor regained its vibrant contrasts as old coatings, embedded residues, and dark joint contamination were meticulously removed from the clay surface. The original Minton pattern became more prominent, while authentic signs of traffic wear and historical character remained evident.

Historic dishing was preserved, as grinding the floor flat would have removed original fired clay from the tile surface. Dishing represents permanent wear accumulated over decades of foot traffic and should not be viewed as a failure when the finished floor retains its historical context. A breathable colour-enhancing sealer was applied, penetrating the pores, buffed off without leaving a superficial coating, and provided stain resistance while allowing moisture to escape.

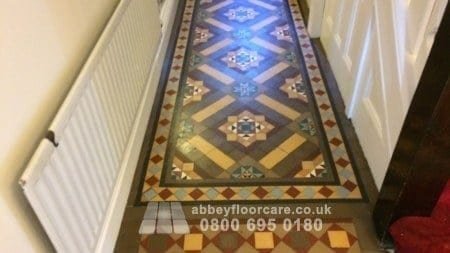

The completed hallway showcased a significantly improved appearance compared to its pre-restoration state and, in many respects, surpassed how it might have looked under outdated domestic coatings. The sealed surface became easier to maintain, as removing dry grit, using neutral pH cleaning, and resealing at appropriate intervals helped preserve the restored colour depth. The behaviour of colour in worn patterned clay is further explored in restoring colour and pigment to faded Victorian mosaic tiles, which delves into surface wear and clay pigment depth in greater detail.

Where Can You Access More Information on Common Issues Faced with Victorian Tiles?

Understanding common problems associated with Victorian tiles requires a comprehensive perspective, as residues, loose sections, faded colours, and missing pieces rarely occur in isolation. The Walsall hallway exemplifies why historic floors necessitate a holistic restoration approach: the original tiles, grout lines, moisture pathways, coating histories, and final protective measures all contributed to the overall outcome. A related Minton hallway project is detailed in the Minton tile hallway restoration in Stafford, where surface contamination and controlled extraction similarly shaped the final appearance of the floor.

When addressing broken tiles, missing tiles, or areas of old repair that disrupt a Victorian hallway pattern, it is crucial to source and match replacement tiles with care. Quality repair work respects the original size, colour, border logic, thickness, and layout of the old floor to ensure that new work integrates seamlessly with the existing design. More extensive cleaning, sealing, and aftercare guidance can be found in the Victorian and Minton tile cleaning hub, which connects this Walsall outcome to broader material guidance.

Proper ongoing maintenance remains vital in prolonging the life of the restored floor. A tailored handover should provide practical advice: remove grit before wet cleaning, use a pH-neutral maintenance cleaner, avoid bleach or steam cleaning, and evaluate sealing processes before the surface begins to absorb spills rapidly again. Simple yet essential.
